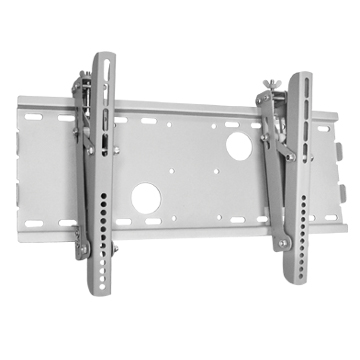

Tilting Wall Mount
Tilting TV Wall Mount for 32 to 50 inch
SKU 33TW005 · MPN 33TW005
Tilting wall mount for flat panels from 32 to 50 inches, rated to 100 lb. The screen tilts up to 15 degrees down and sits 2.36" from the wall. Fits VESA mounting patterns from 75 x 75 to 650 x 400 mm.
Specifications
| Recommended screen size | 32 to 50 in |
|---|---|
| Weight capacity | 100 lb |
| Tilt | 15° down |
| VESA mounting range | 75 × 75 mm to 650 × 400 mm |
| Profile (distance from wall) | 2.36 in |
| Manufacturer | Expert AV Products, Inc. |
Details
The display fastens to the mount through the threaded VESA holes on its back panel; check that its hole pattern falls between 75 x 75 mm and 650 x 400 mm before installation. Confirm the display weight is at or below 100 lb. The mount itself must anchor to wall structure, wood studs or masonry, not to drywall alone; locate the framing before drilling.
Choose a tilting mount when the screen will sit above eye level: angling it up to 15 degrees down keeps the picture aimed at the people below. At 2.36" from the wall, the profile stays close to that of a fixed mount while adding the adjustment. The size range fits mid-size displays in conference rooms, waiting rooms, restaurants, and digital signage. Set the angle during installation and check it from where people will actually watch. Never exceed the rated capacity.
