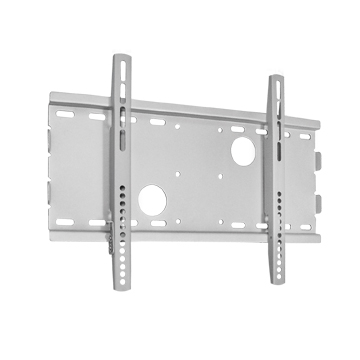

Fixed Wall Mount
Fixed TV Wall Mount for 25 to 40 inch
SKU 22FW001 · MPN 22FW001
Fixed wall mount for flat panels from 25 to 40 inches, rated to 100 lb. The mount holds the screen 1.25" from the wall on a double-stud bracket. Fits VESA mounting patterns from 63 x 69 to 482 x 330 mm. Silver powdercoat finish.
Specifications
| Recommended screen size | 25 to 40 in |
|---|---|
| Weight capacity | 100 lb |
| Tilt | None (fixed) |
| VESA mounting range | 63 × 69 mm to 482 × 330 mm |
| Profile (distance from wall) | 1.25 in |
| Manufacturer | Expert AV Products, Inc. |
| Fits VESA standards (mm) | 75x75, 100x100, 200x100, 200x200, 300x300, 400x200, 400x300 |
Details
The wall bracket spans two studs, spreading the load across the wall framing rather than a single point. The display bolts to the mount through its rear VESA holes, and the 63 x 69 to 482 x 330 mm range covers most panels in this size class without adapter plates. All hardware needed for installation is included. Fasten the bracket to wall structure, wood studs or masonry, never to drywall alone, and confirm the display weighs no more than 100 lb.
With no tilt or swivel parts, a fixed mount holds the screen at a constant angle and keeps it from drifting out of position. It suits installations where the display hangs at eye level and viewers face it straight on, as in conference rooms, restaurants, waiting rooms, and digital signage. Because the angle cannot be changed after installation, verify the viewing height before drilling. Never exceed the rated capacity.
